Single Auger TMR Mixer Machine With Double Weight Chassis High Durability

Product Categories
UHAND AgriTech Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Single Auger TMR Mixer Machine With Double Weight Chassis High Durability

Brand Name : UHAND

Model Number : Pro-16

Place of Origin : China, Shandong, Qingdao

Machine Weight : 5500 kg

Volume : 16 m³

PTO : ≥140 hp

Number of Augers : 1

Auger Thickness : 20 mm

Number of Blades : 11

Contact Now

16 m³ Single-Auger Vertical Trailed TMR Mixer, Pro Series
Engineered for large-scale feeding operations, the UHAND Pro-16 delivers a 16 m³ capacity with a focus on strength and reliability. Its heavy-gauge NM400 steel construction and powerful single-auger design are built to withstand continuous use. It requires greater tractor power (≥140 hp), positioning it as a core asset for ranches focused on efficiency and throughput for large herds.
Product Information
Place of Origin:
China, Shandong, Qingdao
Brand:
UHAND
Model:
Pro-16
Min. Order:
1 Unit
Delivery Time:
30-60 days
Payment Terms:
T/T
Key Features & Benefits
  • Large-Batch Efficiency: Maximizes productivity by preparing 16 m³ of uniform TMR per batch, reducing total daily mixing cycles.
  • Professional-Grade Durability: Robust NM400 steel fabrication and 20mm thick auger ensure long service life in high-demand environments.
  • Optimized for High Power: Designed to harness the power of ≥140 hp tractors, ensuring consistent performance with dense ration formulations.
  • Superior Traction & Load Capacity: Larger 8.25R16×4 tires provide enhanced ground clearance, load-bearing capacity, and traction.

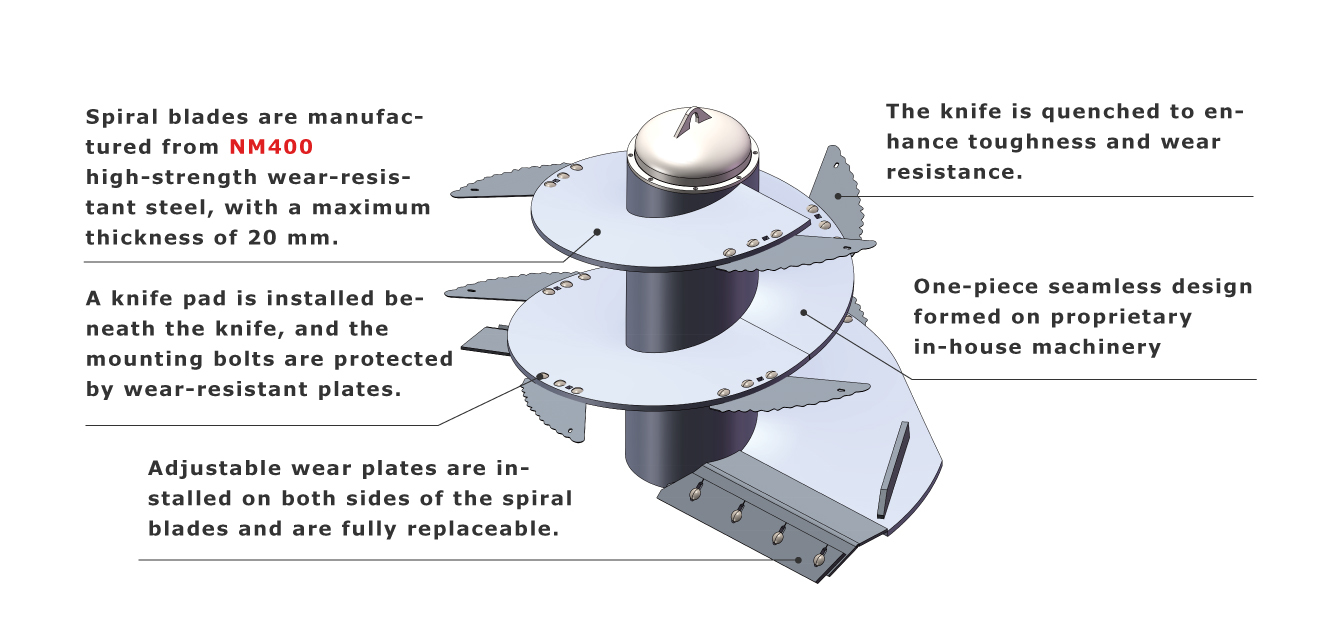

  • Precision Mixing System: Heavy-duty auger with 11 carbide blades achieves thorough blend critical for herd health and performance.
  • Built for Scale: Every aspect designed to meet the time and durability demands of feeding hundreds of cattle daily.
Technical Specifications
Parameter Pro-16
Overall Dimensions (L x W x H) 5000 x 3000 x 3250 mm
Machine Weight 5500 kg
Volume 16 m³
Required PTO Power ≥140 hp
Number of Augers 1
Auger Thickness 20 mm
Auger Speed 540/30 r/min
Number of Blades 11
Blade Material 65Mn, Tungsten Carbide Coated
Cylinder Bottom Plate Thickness 20 mm
Cylinder Side Plate Thickness 10 mm
Tire Specification & Quantity 8.25R16 x 4
Application Scenarios
  1. Large commercial dairy farms or beef feedlots with significant daily feed requirements
  2. Operations where equipment uptime and batch size are critical to operational economics
  3. Ranches that have already invested in higher-horsepower (140+ hp) tractors
Frequently Asked Questions
What does "double-weight chassis" mean for me?
It means exceptional durability and stability. The reinforced frame resists twisting and fatigue, ensuring reliable performance and a much longer service life under heavy loads.
Why does it need ≥140 HP?
This ensures your tractor has enough power to efficiently drive the heavy-duty auger and fully mix dense 16 m³ batches, preventing overload and ensuring optimal performance.
Are the larger 8.25R16 tires important?
Yes. They offer a higher load capacity and better flotation on soft ground, perfectly matching the mixer's heavy-duty design and improving field mobility.
How does your paint process protect my investment?
Our shot blasting and 4-layer paint system create a durable barrier against rust and abrasion, significantly prolonging the equipment's life and appearance.

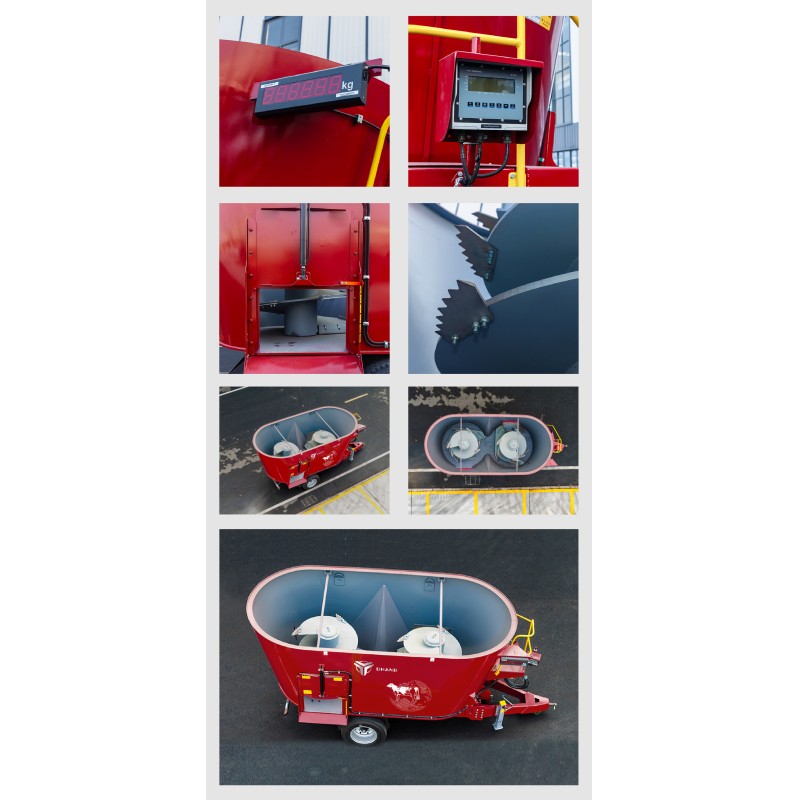

Single Auger TMR Mixer Machine With Double Weight Chassis High Durability
Single Auger TMR Mixer Machine With Double Weight Chassis High Durability
Single Auger TMR Mixer Machine With Double Weight Chassis High Durability
Single Auger TMR Mixer Machine With Double Weight Chassis High Durability
Single Auger TMR Mixer Machine With Double Weight Chassis High Durability
